Welding

We focus on supplying
highly precise welded assemblies,
compiled from standardized parts as well as custom-made based on the customer's drawings, including surface treatment (painting, galvanizing).

Welding and soldering of ferritic, austenitic, high-alloy steels, and non-ferrous metals, including individual combinations.

The welding is ensured by qualified and experienced staff in a modern welding operation, equipped according to European standards.

Naturally, the production of jigs according to the character of individual orders is included.

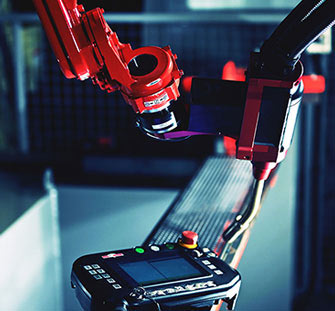

Robotic welding

High productivity
Short production times and maximum performance

Constatnt quality
Precision welds and error minimitazion

Flexibility
Easy programming  and adaptation to different types of welds

Panasonic TM-1600WGH4
Industrial 6-axis osý welding robot

Other:
Panadice 1000-IV positioner – load capacity  up to 1000 kg
Robot arm 1,6 m
Welded part dimensions 1500×1500 mm

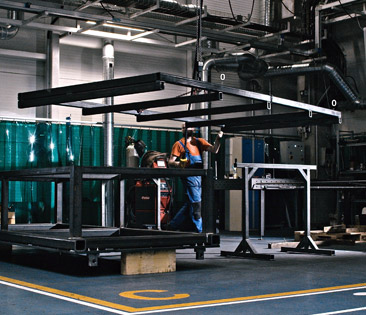

Operating Parameters

  • Working area: 400 m².
  • Load capacity of the bridge crane: 3.2 tons.
  • Maximum dimensions of the weldment: 3000x4000x6000 mm (WxHxL).
  • Welding system used: Fronius TPS400i.

Welding Methods Used

  • MIG (MAG)

131/135 according to EN ISO 4063
Welding with melting electrode in inert gas
(MIG 131/active gas/MAG 135).

  • TIG (WIG)

141 according to EN ISO 4063
Welding with a non-melting tungsten electrode in inert gas.

  • MMA

111 according to EN ISO 4063
Welding with a covered electrode.
